Summit Compression  |  SKU: 8153613404

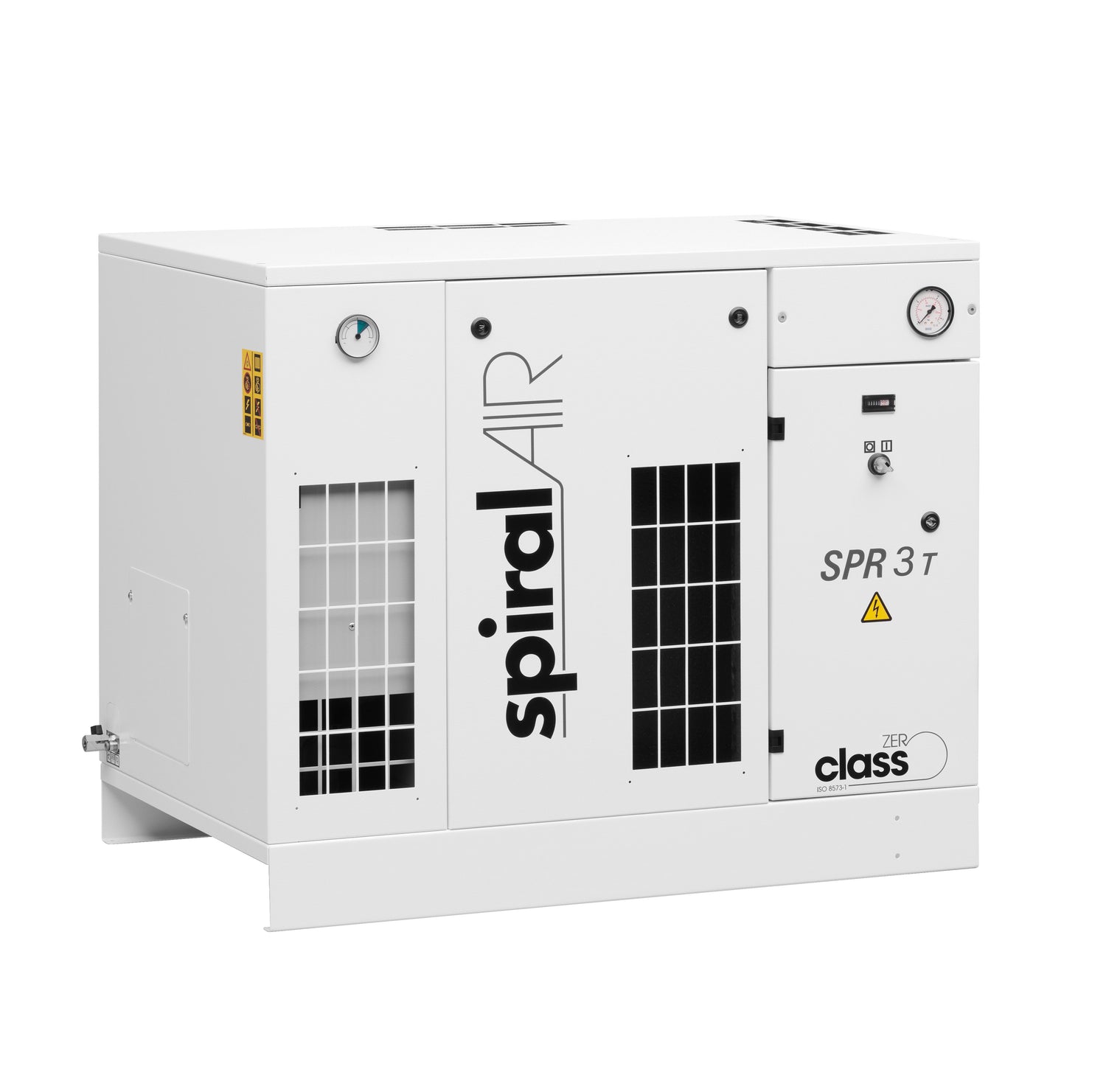

Chicago Pneumatic SpiralAir Scroll Compressor (2.2PH), Dryer Included, Oil-Free, #8153613404, #8153613396

$10,091.20 $12,614.00
Shipping calculated at checkout.

PSIG - ACFM

Chicago Pneumatic SpiralAir Scroll Compressor (2.2PH), Dryer Included, Oil-Free, #8153613404, #8153613396 - 141 - 7.2 is backordered and will ship as soon as it is back in stock.


Highlight title

Text to highlight a key feature of your product

Description

Chicago Pneumatic SPR 2-8 Oilless Scroll Air Compressor Produces ISO 8573-1 (2010) Class Zero certified oil-free air.

STANDARD DESIGN

  • IE3 premium efficiency IP55 motor (belt drive)
  • ASME Tank (for tank ass'y units)
  • Aluminum Piping
  • Micronic High Efficiency Intake Filter
  • SPR T: R134a Dryer with Compact Braze Plate Counter Flow Heat Exchanger with Integrated
  • Water Separator

OPTIONS AND VARIANTS

  • 3 possible Tank Options: Integrated 30L, 71gal ass'y or 132gal ass'y
  • Integrated Fridge Dryer Variant (single power source) = SPR T
  • Phase Sequence Relay
  • Prefiltration Kit
  • Zero Loss Drain for Tank ass'y
  • Water Separator (for SPR) - Standard on SPR T

Dryer: Included

VOTL/PH/HZ: 230/1/60

HP: 2.2

Sound (dBA): 56

Weight (lb):

  • Base Mount: 344
  • Integrated 30L Storage: 432
  • 71Gal Tank Ass'y: 520
  • 132Gal Tank Ass'y: 631

Part Number 8153613396
